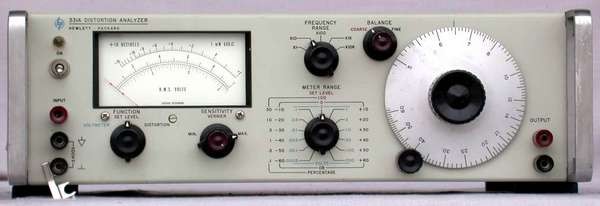

Agilent Technologies 331A - HP / Agilent 5 Hz to 600 kHz Distortion Analyzer

HP / Agilent 331A: This is the classic solid state workhorse distortion analyzer. Covers 5 Hz to 600 Khz. Measures THD down to 0.03%. It also doubles as a highly accurate AC Voltmeter with voltage and dB scales.

• Freq Range: 5 Hz to 600 Khz.
• Distortion Range: 0.1 % to 100%.
• Full Scale Residual Distortion: less than -70 dB (0.03%).
• Accuracy: +/-3% over 10 Hz to 1 MHz with fundamental input less than 30V to 0.3% THD
• Fundamental Rejection: Greater tham 80 dB.
• Input Impedance: 1Mohm +/-5% shunted by <70pF.
• Voltmeter Range: 30uV to 300V rms full scale (13 ranges) 10 dB per range.
• Dimensions: 16 3/4 x 5 x 13 1/4.

Do you have a HP / Agilent 5 Hz to 600 kHz Distortion Analyzer that needs to be calibrated?

We offer standard traceable calibration and ISO 17025 accredited calibration services.
