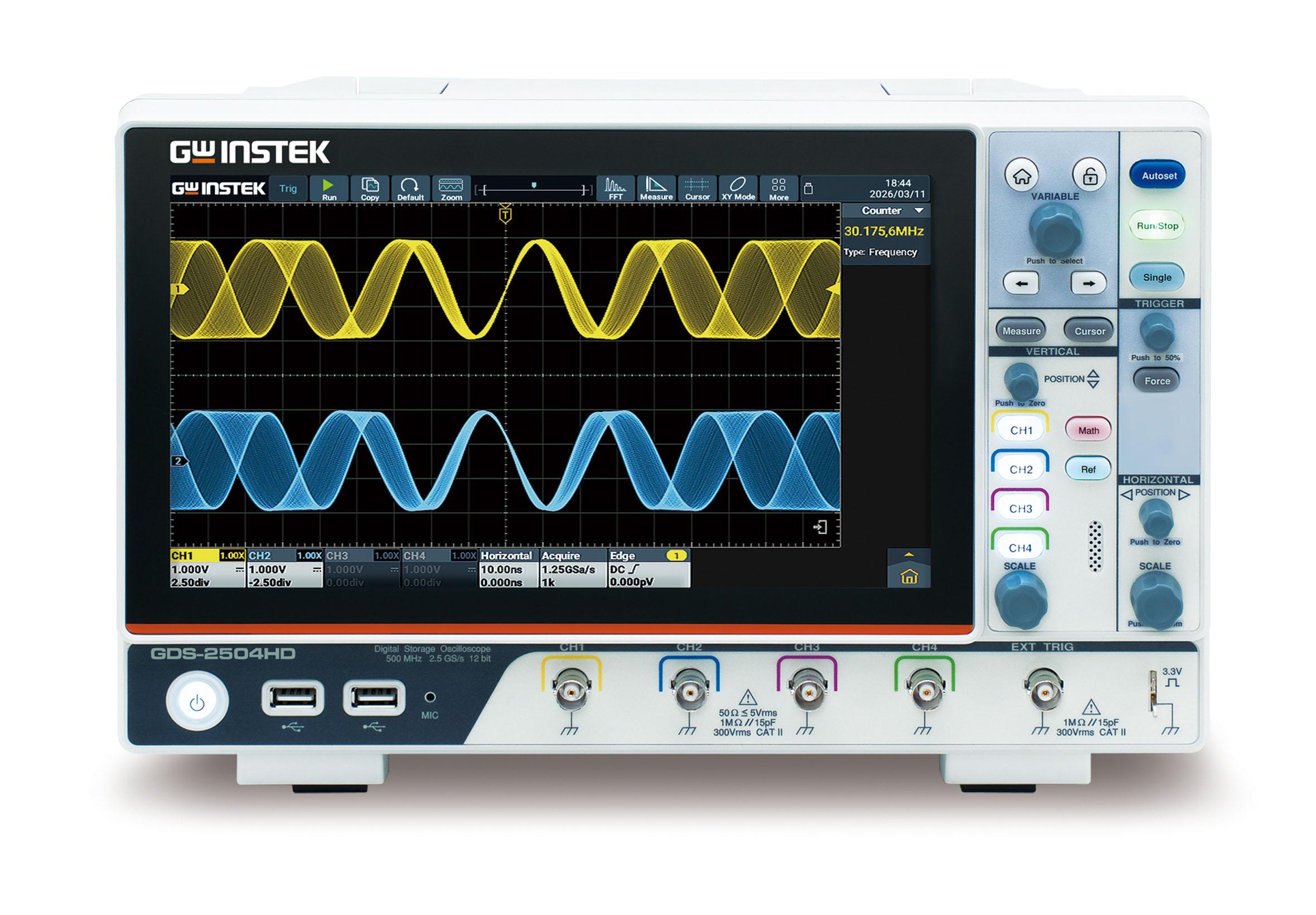

GW Instek GDS-2504HD - 500MHz 4CH 12 Bit resolution Oscilloscope -- COPY

The GDS-2000HD/HG, 250MHz/350MHz/500MHz Oscilloscope with its 12-bit hardware high resolution and compact form factor, satisfies the needs of all application scenarios while delivering excellent cost-performance value, along with an innovative Android-based smart user experience. Whether for demanding power design, complex in-vehicle communication validation, seamless transitions between laboratory and field-testing environments, or digitalized teaching scenarios, it accompanies you every step of the way. With unparalleled precision and intuitive operation, it becomes your most reliable measurement hub on the path to achieving excellence.

• Bandwidth：500 MHz
• Vertical accuracy：≥ 5 mV ± 1.5 %
• Horizontal accuracy：± 1 ppm
• Maximum Real-time sampling rate：2.5 GS/s
• Maximum Memory depth: 500 Mpts (500 MHz)
• 1 Mpt FFT analysis
• Built-in digital voltmeter (DVM), 6-digit frequency counter, and digital filters.
• Thoughtful Design to Prevent Human Error
• 14 trigger types + 43 automatic measurement parameters (with statistics)
• Standard 5 serial bus trigger & decode functions: RS232/UART, I²C, SPI, CAN, or LIN
• Easy to Learn and Use：Built-in 11 languages

GDS-2504HG

* up to 500 Mpts in single-channel mode
* 2.5 GSa/s (single channel) ; 2.5 GSa/s (dual channel) ; 1.25 GSa/s (full channel)

Do you have a 500MHz 4CH 12 Bit resolution Oscilloscope -- COPY that needs to be calibrated?

We offer standard traceable calibration and ISO 17025 accredited calibration services.
