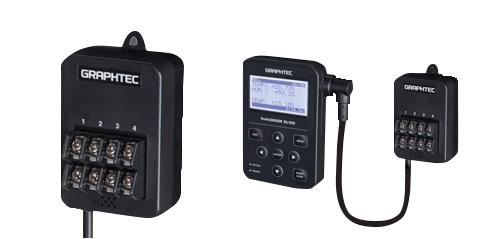

Graphtec America GS-4TSR - Input Terminal Adapter 4 Channel Thermistor
Overview
Features
Specifications
Calibration
The compact GL100 datalogger input terminal adapter with 4 channel thermistor for industries requiring climate monitoring and control such as greenhouse, hydroponics, agriculture and botanical rooms gives managers real time environment and climate monitoring. Fine arts museums and galleries are also served for controlled environment settings where the GL100 excells!
| Measurement Data | Temperature, Logic/Pulse (instant and accumulated) | |
| Measurement ch | Temperature |
4ch(1)
|
| Logic/Pulse Count |
4ch(1)
|
|
| Input Method | Scans using photo-MOS relay. All channels are non-isolated input. | |
| Range of Temperature Measurement | Supports two types of thermistors Type A: -40.0º to 105.0ºC; GS103AT-4Ptime Type B: -40.0º to 120.0ºC; GS-103JT-4Ptime |
|
| Temperature Measurement Accuracy | Main Unit |
-40 ≤TS <0ºC ± 0.7ºC
0 ≤TS ≤35ºC ± 0.2ºC 35 < TS ≤70ºC ± 0.4ºC 70 < TS ≤120ºC ± 1.0ºC |
| Thermistor |
±0.4ºC (represented value)
GS-103AT-4P / GS103JT-4P |
|
| Logic / Pulse Input | Input Voltage Range |
0 to +24V (single line ground input)
|
| Input Signal |
Wireless pressure point(2), open corrector, voltage input
|
|
| Input Voltage Threshold |
Approximately +2.5V
|
|
| Hysteresis |
Approximately 0.5V (+2v to +2.5V)
|
|
| Range of Pulse Measurement | Instant count: Maximum 200C / sampling interval Accumulated value: Maximum 65535C(3) |
|
| Temperature Unit of Denomination | ºC / ºF (selectable) | |
| Sampling Intervals | 0.5 | 1 | 2 | 5 | 10 | 20 | 30 sec 1 | 2 | 5 | 10 | 20 | 30 | 60 min |
|
| Processor Functionality | Luminance | 0 to 999,999 klxh |
| UV Ray | 0 to 999,999W/cm2 (2) | |
| Sampling Intervals | 0.5 | 1 | 2 | 5 | 10 | 20 | 30 sec 1 | 2 | 5 | 10 | 20 | 30 | 60 min |
|
| Extension Cable | Approx 200mm | |
| Operating Environment | -10º to 50ºC, 80% RH and below (non-condensed) | |
| External Dimensions | 46mm x 66mm x 35.5mm (excludes protrusion) | |
| Weight | 83g (2.92 oz) | |
(1) Measurement type for each channel can be seperately selected.
(2) A contact point, b contact point, NO, NC.
(3) Clear accumulated value by QUIT key or when starting recording.
