Fluke XLENS/MACRO3 - Macro 3 Infrared Lens
Overview
Features
Specifications
Calibration

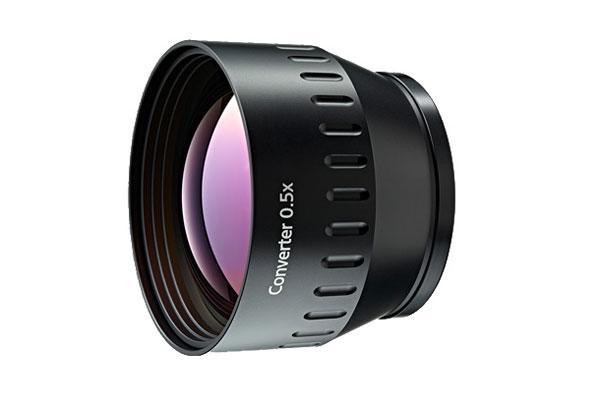

Close up macro lens (0.5x) for inspection and analysis of even smaller subjects in research and development applications – compatible with TiX1000, TiX660 and TiX640 models.
Applications: Research and development, extremely small targets, PCB boards (heat dissipation), semiconductor substrates, and seals.
| General Characteristics | |
| Lens description | Close-up 0.5x |
| Focal distance | 60 mm |
| Focus | 100 mm |
| 1024 x 768 | |
| iFOV (°) | 35.1 x 26.5 mRad |
| Resolution | 35 µm |
| 640 x 480 | |
| iFOV (°) | 32.3 x 24.4 mRad |
| Resolution | 50 µm |
Do you have a Macro 3 Infrared Lens that needs to be calibrated?
We offer standard traceable calibration and ISO 17025 accredited calibration services.
