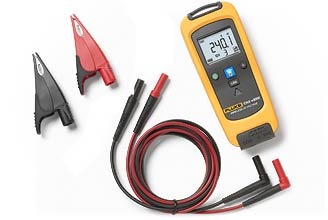

Fluke CNX-V3000 - AC Wireless Voltage Module
The CNX v3000 Wireless Voltage Module is part of the Fluke team of wireless troubleshooting tools.
Connect the CNX v3000 AC Wireless Voltage Module to your test point, and view the results up to 20 meters away on the CNX 3000 Wireless Multimeter. You’ll save time, with less run-around collecting multiple measurements. Plus, no more writing down data as the CNX 3000 captures up to 65,000 sets of time stamped min/max/avg readings. CNX wireless test tools also offer increased safety by letting you view readings in a separate location from the test point. Now you can take readings on moving machinery, with only the measurement module in harm’s way.
The CNX v3000 AC Wireless Voltage Module provides:
- True-RMS AC voltage measurements to 1000V
- ±1% accuracy to 500 Hz, ± 2% accuracy to 1 kHz
- Memory recording up to 65,000 readings
- Backlit LCD display
- CAT IV 600 V, CAT III 1000 V; IP42
The CNX wireless system can track up to 10 measurement modules simultaneously, with results sent to a PC for detailed analysis.
Accuracy is specified as ± ([% of reading] + [number of least significant digits]). All ranges are autoranging. Accuracy is specified from 5 % to 100 % of the range obtained by autoranging, from 18 °C to 28 °C.
| AC Voltage | |||
| Range ¹ | Resolution | Accuracy ² ³ | |
| 45 Hz to 500 Hz | 500 Hz to 1 kHz | ||
| 6.000 V | 0.001 V | 1.0 % + 3 | 2.0 % + 3 |
| 60.00 V | 0.01 V | ||
| 600.0 V | 0.1 V | ||
| 1000 V | 1 V | ||
| ¹ All AC voltage ranges are specified from 1 % of range to 100 % of range. ² Crest factor of ≤ 3 at full scale up to 500 V, decreasing linearly to crest factor ≤ 1.5 at 1000 V. ³ For non-sinusoidal waveforms, add –(2 % of reading + 2 % full scale) typical, for crest factor up to 3. |
|||
| General Specifications | |
|
LCD w/backlight |
3½ digits, 6000 counts, updates 4/sec |
|
Battery type |
2 AA, NEDA 15 A, IEC LR6 |
|
Battery life |
400 Hours |
|
Memory |
Record up to 65,000 readings |
|
Unbound listen interval |
5 seconds |
|
RF communications |
2.4 GHZ ISM Band |
|
RF communication range |
20 Meters |
|
Operating temperature |
-10 °C to +50 °C |
|
Storage temperature |
-40 °C to +60 °C |
|
Operating humidity |
90 % at 35 °C, 45 % at 40 °C, 45 % at 50 °C |
|
EMC |
EN 61326-1:2006 |
|
Safety compliance |
EN/IEC 61010-1:2010 to 1000 V Measurement Category (CAT) III |
|
Pollution degree |
2 |
|
Temperature coefficient |
0.1 X (specified accuracy)/°C (< 18 °C or > 28 °C) |
|
Safety rating |
CAT IV 600 V, CAT III 1000 V |
|
Certifications |
CSA, FCC T68-FWCS IC:6627A-FWCS |
|
Ingress Protection (IP) rating |
IP42 |
|
Size (HxWxD) |
16.5 cm x 6.35 cm x 3.56 cm (6.5 in x 2.5 in x 1.4 in) |
|
Weight |
.22 kg (8 oz) |
