GW Instek GPI-825 - AC VA Withstand Voltage/Insulation Tester
Overview
Features
Specifications
Calibration
Instek GPI-825: 100VA AC Output - True RMS Current Readback - 3 Ranges of Adjustable Cut Off Current - Digital Display for Voltage, Current and Timer at Same Time - Zero Turn-On Operating Switch (for GPT-805, GPT-815, GPI-825) - Automatic FAIL Indicator of Alarm Lamp and Buzzer - 9 Pin Remote Control for START, RESET - General Input Power Acceptable - Voltage Output Adjustable During Test Period - Arc Detection - Easy Operation
- 500VA AC output
- True RMS Current read-back
- Arc Detection
- Easy Operation
- 3 ranges of adjustable cut-off current
- Digital display for voltage, current and timer at same time
- Zero Crossing Turn-On (for GPT-805/815, GPI-825)
- Automatic FAIL indicator of alarm lamp and buzzer
- 9 Pin PLC Control for Start, Stop and Test Result Output
- General input power acceptable
- Voltage output adjustable during test period
ACW Test
| AC Output Voltage | 0.2kV ~ 5kV |
| V Regulation | 15% |
| V Accuracy | ±(3%rdg 3counts) |
| Trip Current | 0.3 ~ 100mA ; 0.3 ~ 20mA (GPI-826) |
| Current Accuracy | ±(5%rdg 2counts) |
IR Test
| Output Voltage | DC 500V / 1000V |
| Resistance | 1~2000M |
| Resistance Accuracy | 1~500M (5% rdg 2counts) 501M ~2000M : (10% rdg 2counts) |
Features
| Test Time | 1 ~ 180 seconds or continual |
| Arc Detection | 0.3 ~ 100mA 0.3 ~ 20mA (GPI-826) |
| Digital Display | V, A, Time Voltage & Current : 3 1/2 digits, 0.39" LED Timer : 3 digits 0.39" LED |
Power Source
| AC 115V 10%, AC 230V 10%, 50/60 Hz(factory setting) |
Dimension & Weight
| 330(W) x 149(H) x 446 (D) mm, Approx. 20kg |
Do you have a AC VA Withstand Voltage/Insulation Tester that needs to be calibrated?
We offer standard traceable calibration and ISO 17025 accredited calibration services.
Get your AC VA Withstand Voltage/Insulation Tester calibrated today! Click Here!
There are currently no reviews for this product.
Recommended Accessories for the AC VA Withstand Voltage/Insulation Tester

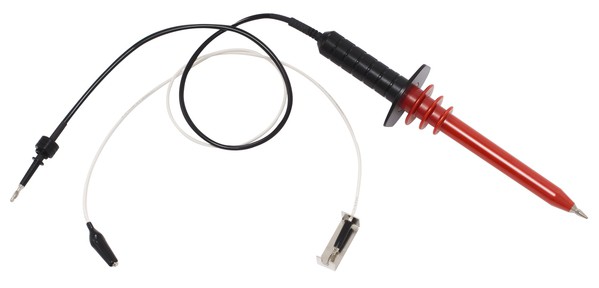

HV Test Leads

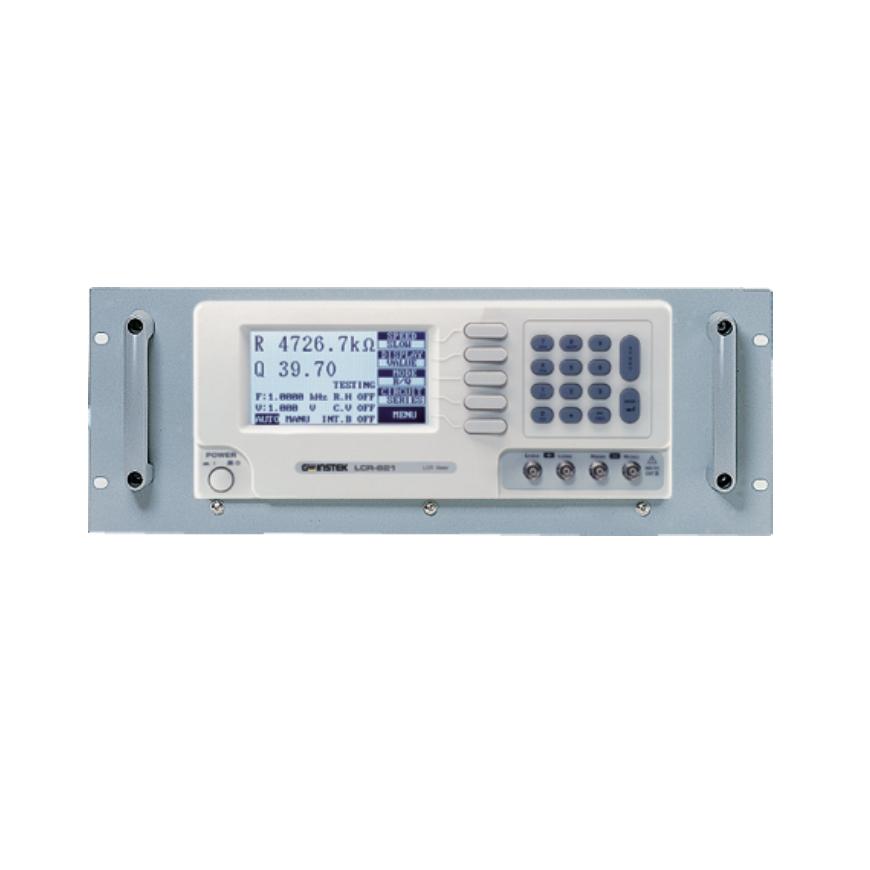

19" 4U Mounting Rack for for LCR800 & GPT/GPI-700A

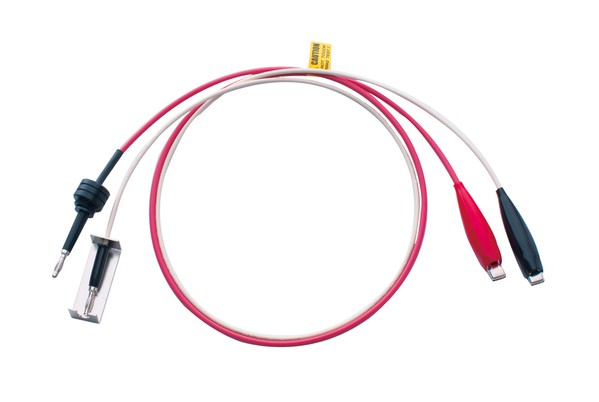

Test Leads
