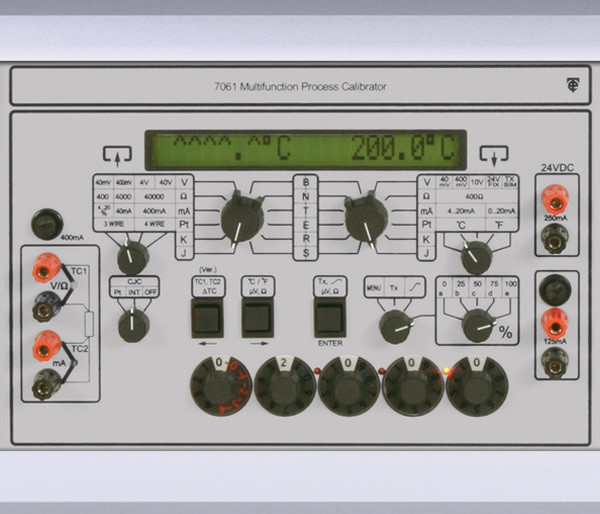

Time Electronics 7061 - Multifunction Process Calibrator Module
The 7061 process calibrator module combines the essential functions of measurement and simulation of volts, millivolts, milliamps, and ohms with the direct readout simulation of thermocouples and RTD's in °C or °F units. Input and output functions are displayed simultaneously and the switch controls allow for easy and precise operation.
Five calibration points are instantaneously accessible through a preset percentage selector and all functions may be generated in a fully programmable ramp format.
In addition to the standard calibration facilities the module may be used as a signal converter. Any electronic input signal can be converted and output as a proportional signal of 4-20mA, 0-5V or sq. root 4-20mA.
The 7061 is highly adaptable, IPT 68 and ITS 90 curves are accommodated and non-standard thermocouples and RTD's may be programmed on request.
- 3 ranges to 40V, 400mA, 40kΩ
- O/p volt. up to 10V, 1µV resolution
- O/p I up to 20mA, 1µA resolution
- O/p R: 0 - 400Ω, 0.01Ω resolution
- Thermocouple measure & simulate
- RTD measure & simulate: PT100
- Ramp function
Technical Specifications
Voltage / Current / Resistance Generation and Measure
Input
Voltage
| Range | Resolution | Accuracy |
|---|---|---|
| 40V | 1mV | 0.03% |
| 4V | 100μV | 0.03% |
| 400mV | 10µV | 0.03% |
| 40mV | 1µV | 0.03% |
Current
| Range | Resolution | Accuracy |
|---|---|---|
| 400mA | 10μA | 0.03% |
| 40mA | 1μA | 0.03% |
| 4-20mA/0-100% | 0.01% | 0.06% |
Resistance
| Range | Resolution | Accuracy |
|---|---|---|
| 40000Ω | 1Ω | 0.03% |
| 4000Ω | 0.1Ω | 0.03% |
| 400Ω | 0.01Ω | 0.06% |
OUTPUT
Voltage
| Range | Resolution | Accuracy |
|---|---|---|
| -2 to +10V | 1mV | 0.06% |
| -100mV to +400mV | 10μV | 0.03% |
| -10mV to +40mV | 1µV | 0.03% |
Output Impedance: < 10Ω
Current
| Range | Resolution | Accuracy |
|---|---|---|
| 0 to 20mA | 10μA | 0.03% |
| 4 to 20mA | 1μA | 0.03% |
| TX Sim (4 to 20mA) | 0.01% | 0.03% |
Max Load Resistance: 900Ω at 20mA, Open circuit voltage 18- 27V
Resistance
| Range | Resolution | Accuracy |
|---|---|---|
| 0 to 400Ω | 0.01Ω | ± 0.03% |
Excitation Current 0.2 to 2mA
Other Specifications: Loop drive supply: Nominal 24V, current limit set to 30mA
Process Signal and Temperature Measurement & Simulation
Temperature
| Thermocouple Type | Temp Range °C | Accuracy °C |
|---|---|---|
|
J |
-210 to 0 |
± 0.4 |
|
K |
-270 to -240 |
± 3.0 |
|
T |
-270 to -250 |
± 3.0 |
|
R |
-50 to 0 |
± 3.0 |
|
S |
-50 to 0 |
± 2.5 |
|
B |
200 to 400 |
± 5.0 |
|
N |
0 to 330 |
± 0.4 |
|
E |
-230 to 0 |
± 0.5 |
RTD - PT100
| Range °C | Accuracy °C |
|---|---|
| -200 to 850 | ± 0.3 |
| Thermocouple | Linearisation to BS 4937. ITS 90 or IPTS68 selectable. |
| Pt100 | Linearisation to BS1904 (1984).DIN43760 (1980). Linearisation Acc: 0.1% of reading for Class A, 38.5Ω F.I |
| Excitation current | 0.5mA (Input), 200μA to 2mA (Output). |
| Cold Junction Compensation | External (Pt100), Internal, Ice point. Accuracy +/-0.2°C at 23°C |
| Ramp | Fully programmable continuous and stepped |
| Steps | 5 Steps with fully adjustable zero |
| Transmitter | Tx function 4-20mA |
| Signal Converter | Any input to any output |
| Dual Readout | Measure and source simultaneously displayed |
General Specifications
| Stability | 100ppm per °C range 0 to 40°C |
| Displays | LCD Dot Matrix, 1 line by 20 charx12mm, alphanumeric. |
|
Module Dimensions |
W285 x H201mm (primary or secondary console fitting) |
| Optional Extras | Calibration Certificates traceable to NPL and UKAS |
