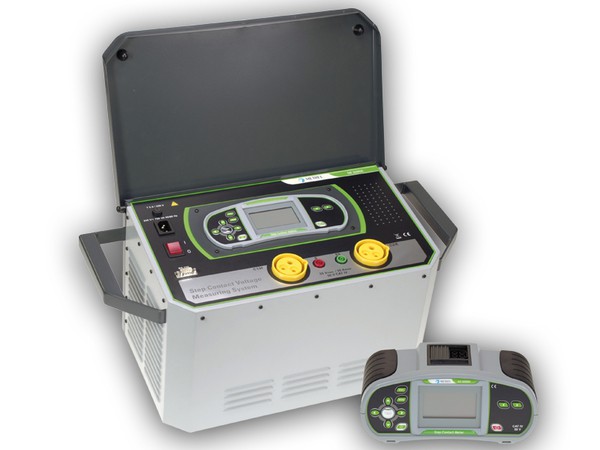

Metrel MI3295 - STEP CONTACT VOLTAGE MEASURING SYSTEM

MI 3295 Step Contact Voltage Measuring System is a voltage measuring system for testing and verification of protective earthing of power stations, substations and other power systems.

MEASURING FUNCTIONS

• Measurement of step voltage and contact voltage.
• Measurement of earthing resistance with resolution of 1 mΩ.
• Measurement of specific earth resistance.

KEY FEATURES:

• High accuracy of the measurements due to a high current of up to 50 A and effective suppression of noise.
• Excellent immunity even against changing earth currents.
• Autonomous Step Voltage meter: no need for long voltage leads.
• Low weight.
• High safety due to low output voltage (55 V).
• Downloads test results directly to the PC with the help of the profes-sional PC SW package HVLink which enables analysis and documenta-tion of test results.

TECHNICAL DATA
STATION
Dimensions (w x h x l): 563 X 275 X 257 mm
Weight (with batteries, without accessories): 29.5 kg

METER
Dimensions (w x h x l): 230 X 103 X 115 mm
Weight (with batteries, without accessories): 1.3 kg

Do you have a STEP CONTACT VOLTAGE MEASURING SYSTEM that needs to be calibrated?

We offer standard traceable calibration and ISO 17025 accredited calibration services.
