GW Instek Unveils New GPE-3060/6030 Triple-Channel DC Power Supply

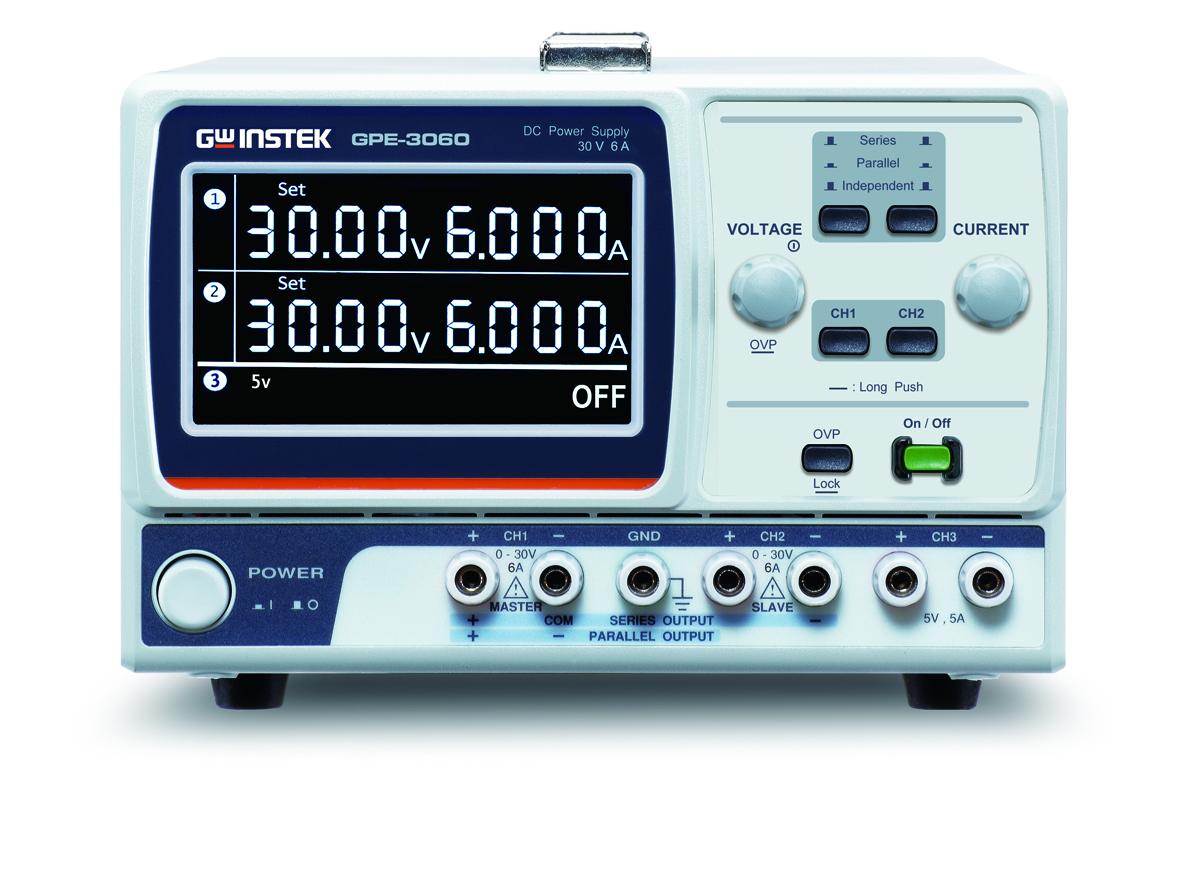

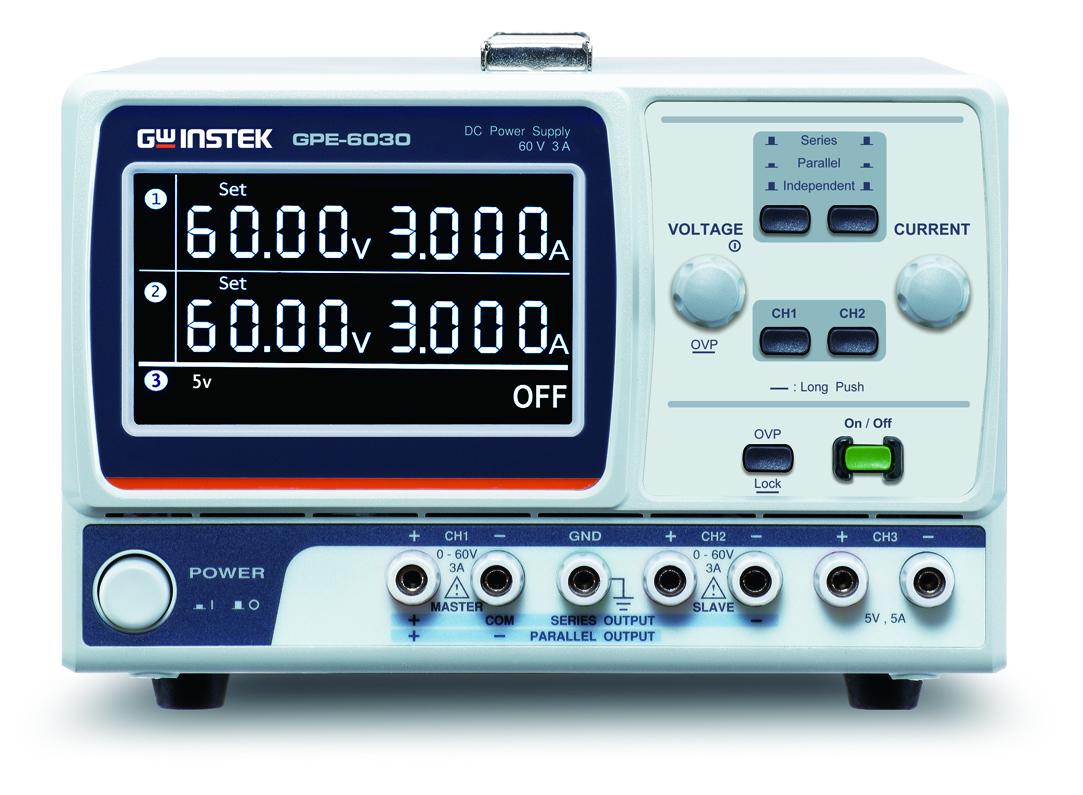

The GPE-3060/6030 launched by GW Instek are high-resolution linear DC power supplies. Their primary aim is to replace the existing GPC-3060D/ 6030D models. The GPE-3060/6030 deliver 385 watts of output power and feature three independent isolated output channels. The GPE-3060 offers CH1/CH2 outputs of 0 to 30V and 0 to 6A, while the GPE-6030 supports CH1/CH2 outputs of 0 to 60V and 0 to 3A. Both models feature CH3 outputs of 5.0V at 5A.



With respect to high program resolution, GPE-3060 provides 10mV/2mA and GPE-6030 offers 20mV/1mA. GPE-3060/6030 adopts a new hybrid power supply design, which can save 13% of power consumption compared with the wattage of the conventional linear power supplies, and the volume and weight are significantly reduced. Please see the comparison table below for details:





Model	GPE-6030/3060	GPC-3060D/6030D
Power(W)	385W (+10W)	375W
Weight	10kg (-8kg)	18kg
Power Consumption	680W (-100W)	780W
Dimensions	213W x 145H x 362D	255W x 145H x 420D
CE Mark	Yes	N/A





Features, Advantages and Benefits



Features	Advantages	Benefits
The stand-alone unit has serial/parallel connection function	Increase the overall output voltage and current	For DUTs with different purposes, the internal series/parallel connection mechanism can be used to avoid the inconvenience of additional wiring.
Encoder switch design High measurement resolution	Provide more accurate voltage and current setting values	If customers have small current measurement requirements, their measurement accuracy can be improved.
Checking/confirmation function of setting value	Check the original parameters ​​without turning off the output function first.	Instantly view the original setting parameter information while outputting
Hybrid power supply design architecture	Improve output efficiency and reduce volume and weight	Save power, reduce size, weight and noise
